Jemski paipo

#1

Unread post by krusher74 »

My friend Jem howe of http://www.jemski.co.uk/boards.html

Jem is a great board builder and does many wave ski's, hence the jemski (and i think is current European champion)

Had asked for my input on a board that he had been asked to build, a customer who was older with back problems wanted to stay in the water so he has suggested a prone board, the guy is about 6'5" and 225 so I had help out with influences from jeff chamberlins L41 and other boards on here with some of my own board throw in.

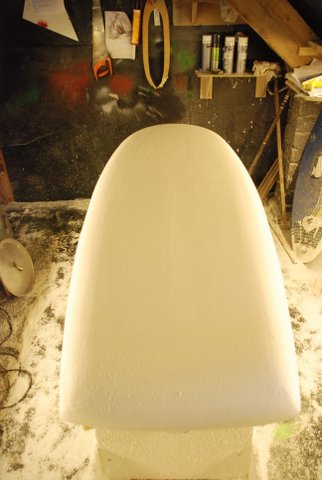

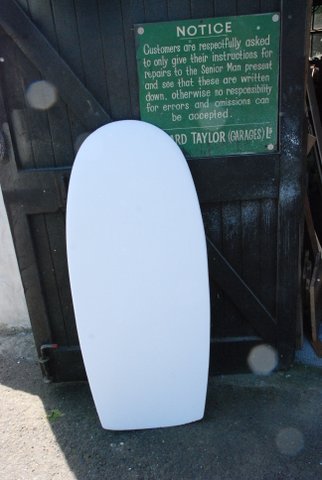

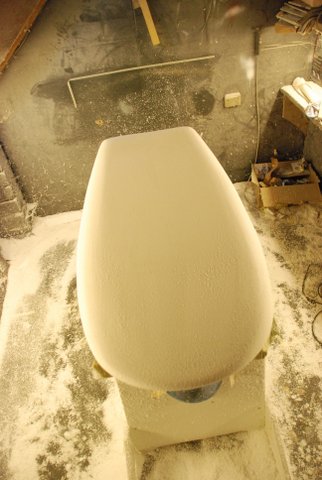

Its an EPS stringerless blank.

Jem says " Went for 4'6" by 24" with a nod to the spoon with some concave in deck Tucked/ down rails and rolled nose as you suggested - flat mid section and concave starting in last 40% of board. "

I also asked about EPS glassing, He replied "lots of guys use ' spackle' which is basically polyfiller, bad a idea. I use epoxy and glass bubbles, reduces 'seep' into blank. weight and better flat finish."

Its not glassed yet though, but here are pics.
Attachments

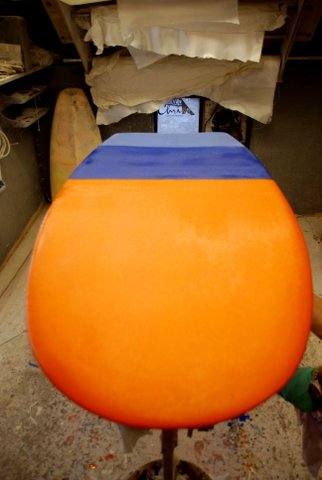

jemski 1.JPG
jemski 1.JPG (33.3 KiB) Viewed 3199 times
User avatar
nomastomas
Big Wave Charger
Posts: 597
Joined: Thu Nov 17, 2011 2:30 am
City: Ojai
State or Province: CA
Country: USA
Interests: Surfing, cycling and fishing
Location: Ojai, CA
Contact:

Re: Jemski paipo

#2

Unread post by nomastomas »

That shape is becoming pretty mainstream, with volume modulated to meet rider requirements by variations in thickness, width and length. Good stuff. What has he decided to do about fins? He's right on the money about using epoxy resin and micro-balloons to seal the blank instead of Spackle. I seal all my eps foam core boards this way. Helps to fill-in the the little pock marks and ensures a good bond with the lamination. Doesn't add a lot of weight and doesn't cost a lot of money.
"This is a paipo site...isn't it?"
www.tp4surf.com
User avatar
krusher74
Big Wave Charger
Posts: 842
Joined: Wed Nov 07, 2012 3:53 pm
City: easkey
State or Province: co sligo
Country: Ireland
Interests: Surfing, vintage cars and motorbikes
Location: Easky, Co sligo , ireland
Contact:

Re: Jemski paipo

#3

Unread post by krusher74 »

Yeah its makes sense its just a simmons planing hull. He had its all worked out in the 50's

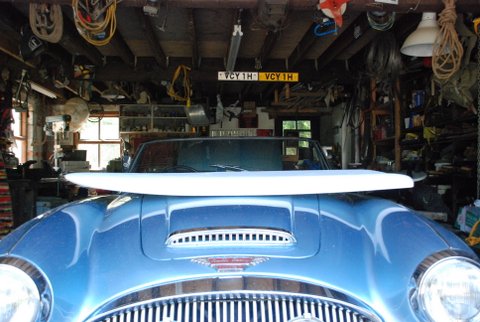

Jem has already got excited about the guys board and shaped himself a 4'2" out of a small offcut he had.

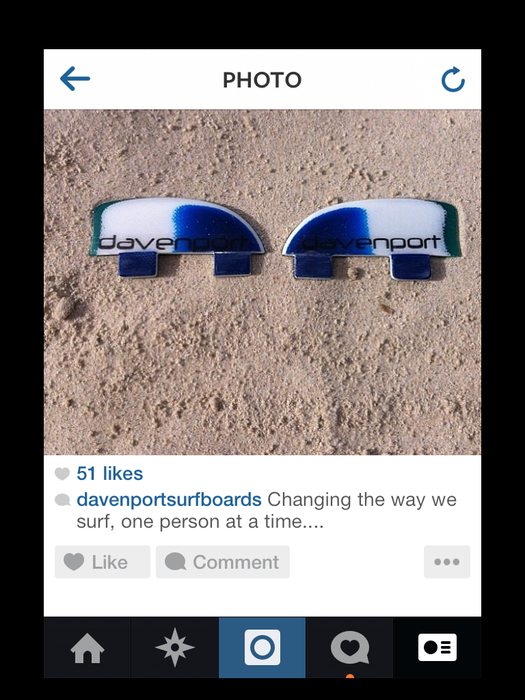

Look to try these out as fins, but with a standard fcs fin box anything could be tried.
Attachments
User avatar
rodndtube
Big Wave Charger
Posts: 1163
Joined: Thu Aug 18, 2011 10:34 pm
City: Arbutus Land
State or Province: Maryland
Country: USA
Interests: Waveriding, travel and the Paipo Research Project
Location: Maryland, USA & Where the Waves Are Breaking
Contact:

Re: Jemski paipo

#4

Unread post by rodndtube »

Out in the boondocks right now with a super slow spotty Internet connection... could not readily find any info on the fins -- how tall are there and how long is the base? They appear to be fiberglass. They also appear to be slightly canted. Any info?
rodNDtube
"Prone to ride"
I love my papa li`ili`i

"The sea doth wash away all human ills."
-- Euripides.
User avatar
krusher74
Big Wave Charger
Posts: 842
Joined: Wed Nov 07, 2012 3:53 pm
City: easkey
State or Province: co sligo
Country: Ireland
Interests: Surfing, vintage cars and motorbikes
Location: Easky, Co sligo , ireland
Contact:

Re: Jemski paipo

#5

Unread post by krusher74 »

I don't know anything about them myself, jem just sent me a pic saying he was going to try them, seeing there a FCS 2 tab, that'd going to roughly make them 4/5" long and 2/3" tall.

I willtry to get more info for you. :?
User avatar
krusher74
Big Wave Charger
Posts: 842
Joined: Wed Nov 07, 2012 3:53 pm
City: easkey
State or Province: co sligo
Country: Ireland
Interests: Surfing, vintage cars and motorbikes
Location: Easky, Co sligo , ireland
Contact:

Re: Jemski paipo

#6

Unread post by krusher74 »

rodndtube wrote:Out in the boondocks right now with a super slow spotty Internet connection... could not readily find any info on the fins -- how tall are there and how long is the base? They appear to be fiberglass. They also appear to be slightly canted. Any info?
if your interested in the fins davenportsurfboards@gmail.com is the guy who makes them :D
User avatar
rodndtube
Big Wave Charger
Posts: 1163
Joined: Thu Aug 18, 2011 10:34 pm
City: Arbutus Land
State or Province: Maryland
Country: USA
Interests: Waveriding, travel and the Paipo Research Project
Location: Maryland, USA & Where the Waves Are Breaking
Contact:

Re: Jemski paipo

#7

Unread post by rodndtube »

Thanks... I sent an email to him.
rodNDtube
"Prone to ride"
I love my papa li`ili`i

"The sea doth wash away all human ills."
-- Euripides.
User avatar
krusher74
Big Wave Charger
Posts: 842
Joined: Wed Nov 07, 2012 3:53 pm
City: easkey
State or Province: co sligo
Country: Ireland
Interests: Surfing, vintage cars and motorbikes
Location: Easky, Co sligo , ireland
Contact:

Re: Jemski paipo

#8

Unread post by krusher74 »

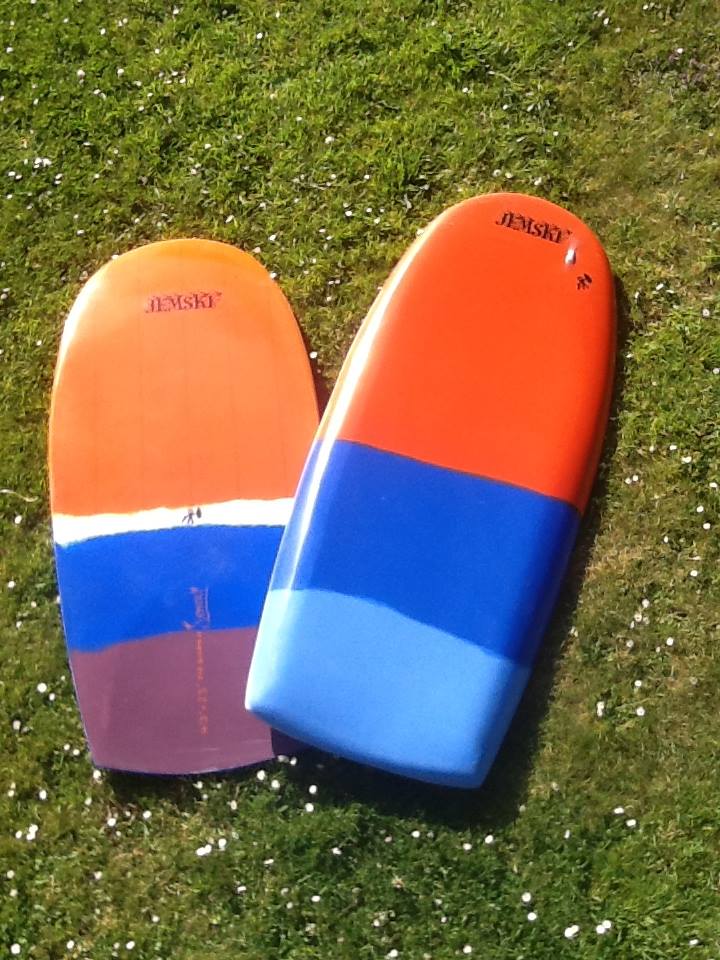

he made a couple! :D
Attachments
jem skis.jpg
User avatar
nomastomas
Big Wave Charger
Posts: 597
Joined: Thu Nov 17, 2011 2:30 am
City: Ojai
State or Province: CA
Country: USA
Interests: Surfing, cycling and fishing
Location: Ojai, CA
Contact:

Re: Jemski paipo

#9

Unread post by nomastomas »

Most of the major fin makers have a "Nubster" fin of some kind in their inventory. True Ames, Futures, Rainbow and Shaper's Fins (Australia) to name a few.
"This is a paipo site...isn't it?"
www.tp4surf.com
