Facebook posts: Mark Pridmore

What works and what doesn't. Share design ideas, references and contacts for paipo board builders.
User avatar
bgreen
Big Wave Charger
Posts: 1395
Joined: Fri Aug 19, 2011 5:17 pm
City: Brisbane
State or Province: Qld
Country: Oz
Contact:

Facebook posts: Mark Pridmore

#1

Unread post by bgreen »

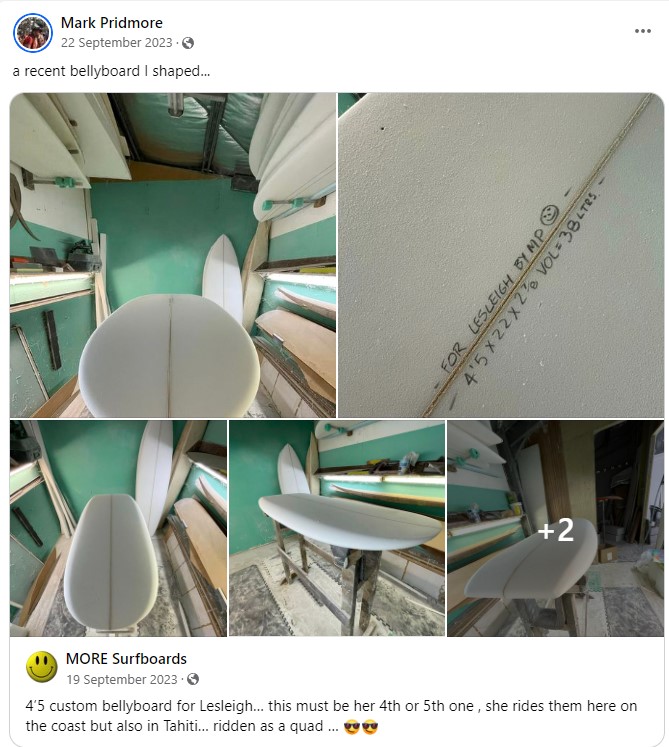

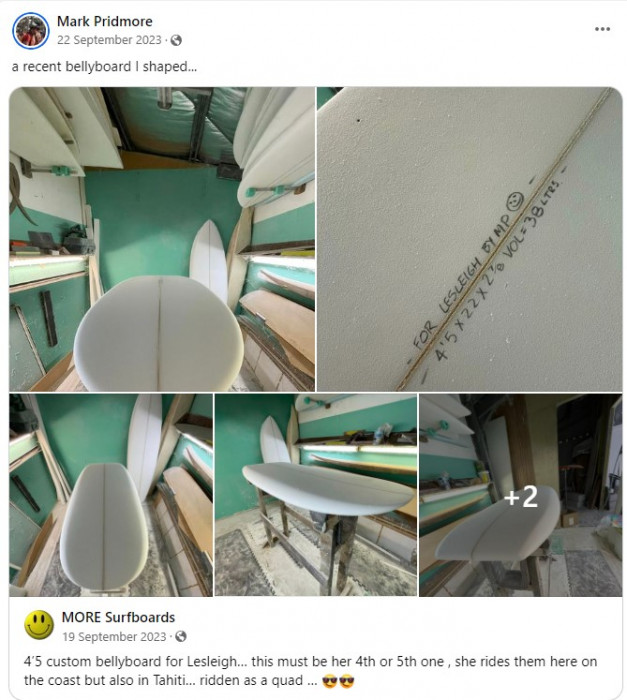

September 22, 2023

https://www.facebook.com/groups/paipobe ... 470510080/
cool, they haven’t evolved much tbh , she lives them how they are so requests the same board but we have increased length and volume slightly over the years … I do 2 different bellyboard models though , I’ll share more pics here soon if some different ones over the years …'

cool, thanks for the recommendations , appreciate that alot...yeah, there's a bit of volume in it but for such short boards, you generally have to go thick to get max volume, hence the flat deck in this shape .. usually quads or twinnies, never done a thruster or 5 finner ... Im persoanlly a huge fan of the Twinzer set up so would like to do some bellyboards with them on them, think they'd work a treat...

yeah for sure , fins are very key to any boards performance . I’ve made and ridden a lot of finless and semi finless boards so am sure there’s a lot of that design experience I can bring to the bb’s too…

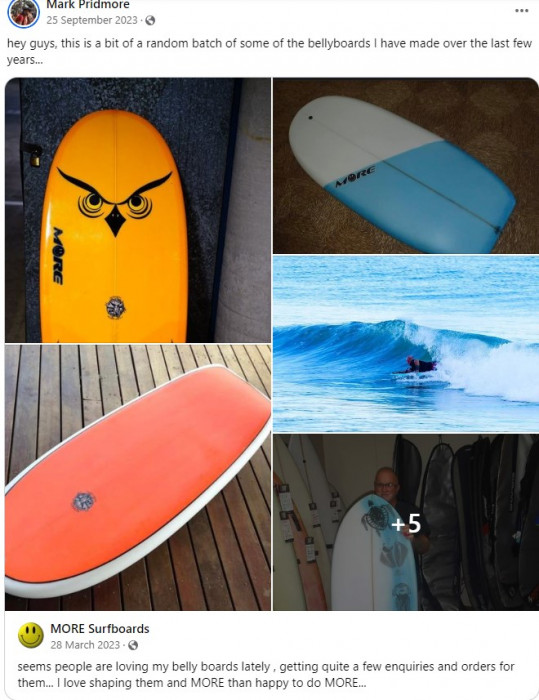

September 25, 2023
https://www.facebook.com/groups/paipobe ... 559735080/

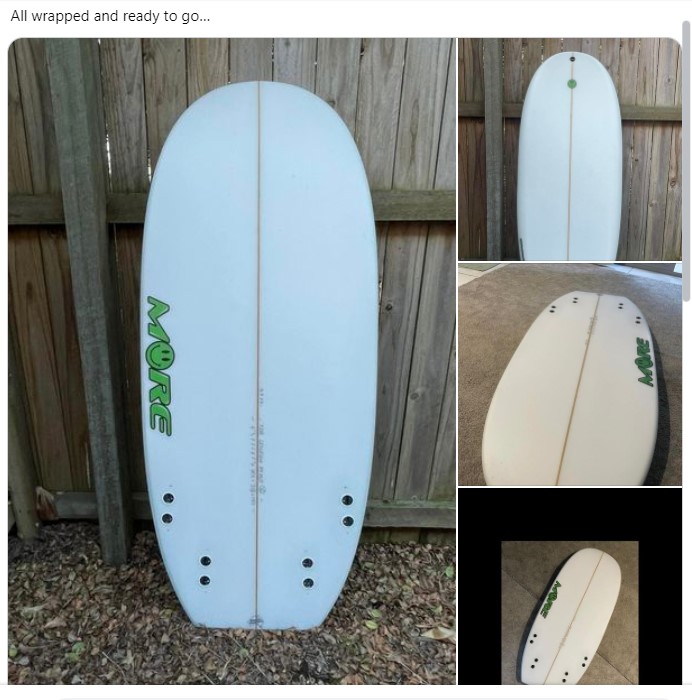

September 29
https://www.facebook.com/groups/paipobe ... 050760080/

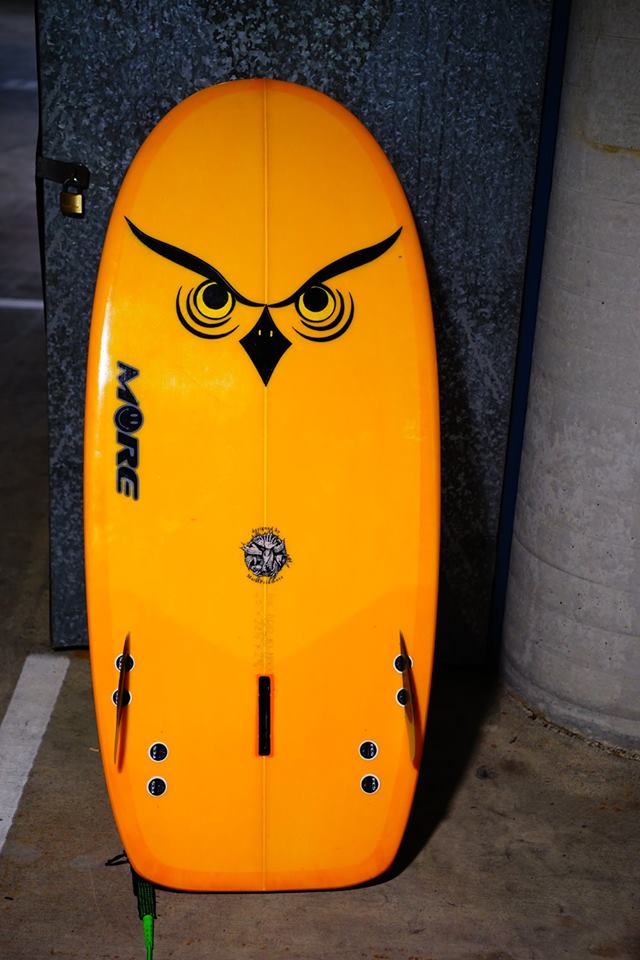

she has had 3 or 4 of these from me so I think she’s just transferring her current set … I think some standard template 3’s in the front and smaller ones in the rear would do the job… but she also surfs the reefs in Tahiti where I’d think she’d want more fin if the waves were serious … the beauty of fcs I guess…

https://www.facebook.com/groups/paipobe ... 318770080/

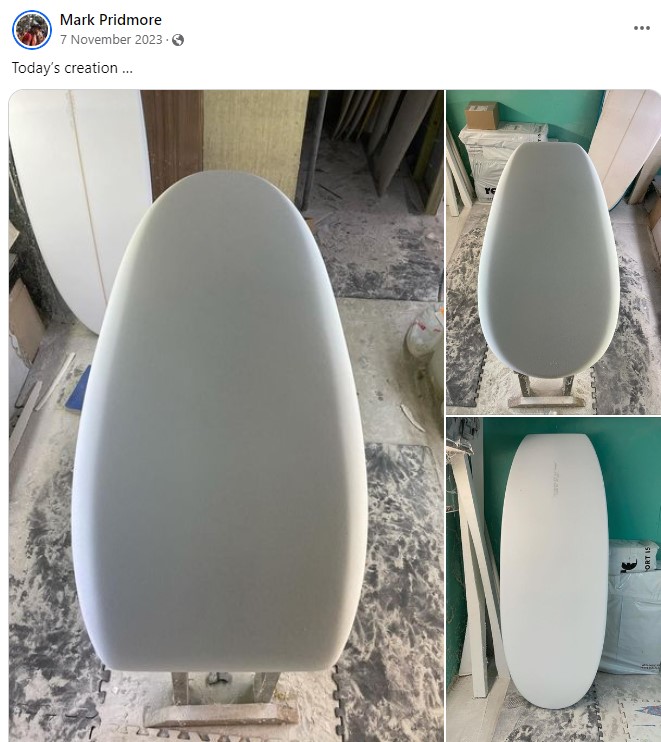

November 7, 2023

Todays creation
I have been making bellyboards for years now but they are proving more n more popular lately , getting awesome feedback on them from happy customers and it’s awesome to be able to make something that is keeping surfers with crook legs or injuries in the water … ( as this is often the case for a majority of my bellyboard orders ) … this one is 4’9 and about 39 ltrs, will be a twin fin … no

this one has been designed to be ridden shorter for better pivot and the wider nose helps maintain width which is great for stability , planing area but also the rails are more parallel for drive …thanks mate, glad u like it…

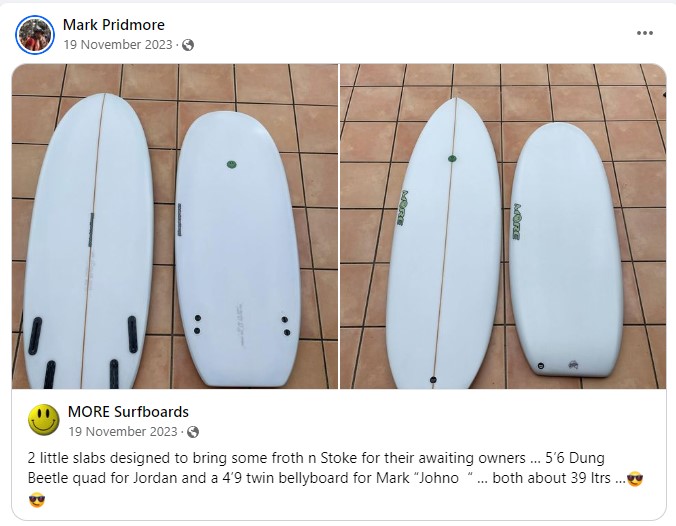

November 19, 2023
https://www.facebook.com/groups/paipobe ... 978770080/
both have concaves, both double thru the fins mate, I love my flat entry, slight single into decent double , sometimes into a bit of vee out the tail …
flat bottoms go ok I think but feel a bit lifeless and neutral to me… but it’s all personal preference mate…
Last edited by bgreen on Mon Jul 22, 2024 4:55 pm, edited 6 times in total.
User avatar
bgreen
Big Wave Charger
Posts: 1395
Joined: Fri Aug 19, 2011 5:17 pm
City: Brisbane
State or Province: Qld
Country: Oz
Contact:

Re: Facebook posts: Pridmore

#2

Unread post by bgreen »

November 23, 2023
https://www.facebook.com/groups/paipobe ... 767725080/

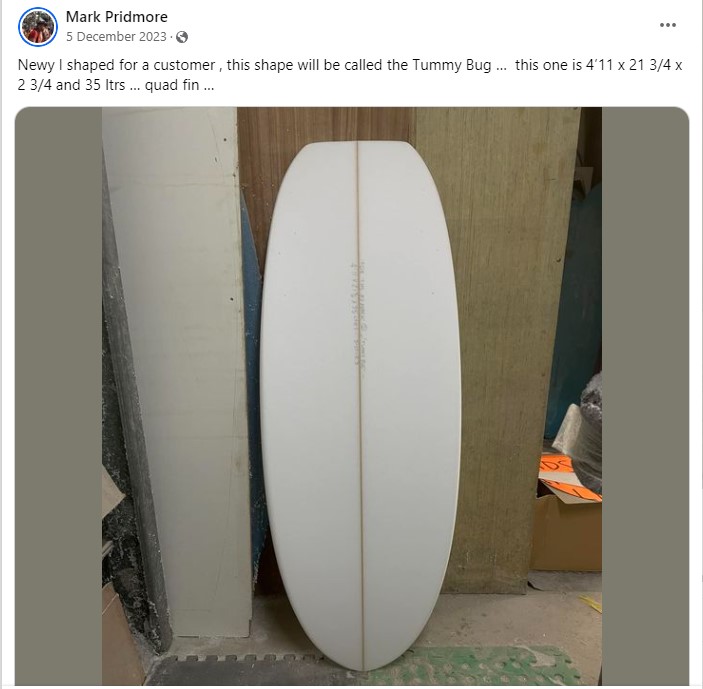

5 December, 2023https://www.facebook.com/groups/paipobellyboard ... 908105080/
The attachment FB_pridmore5Dec23.jpg is no longer available
This bellyboard is a close cousin to the Dung Beetle , so it’s been dubbed ‘ the Tummy Bug ‘ , I have now got 3 seperate base models for bellyboards … fine tuning them right in now …

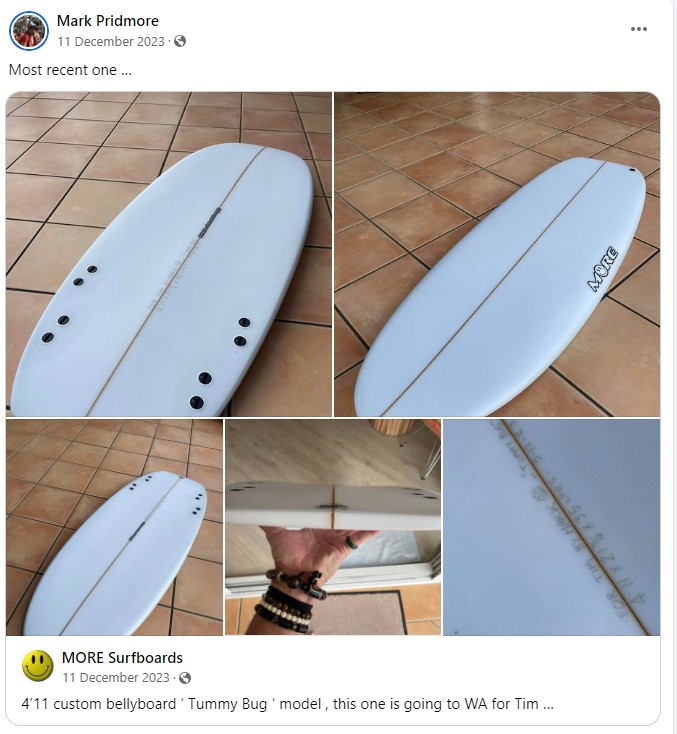

December 11

https://www.facebook.com/groups/paipobe ... 591100080/
thanks , it’s more forward and more considered so can be twin in forward plugs , ridden with smaller fins , or twins in rear plugs or quad as well , I’ve made myself one with very similar fin placements to trial , test and fine tune …

I do them custom so this ones for a pretty fit guy who weighs 70 kgs , kept it at 21 3/4 so it turns well from rail to rail…

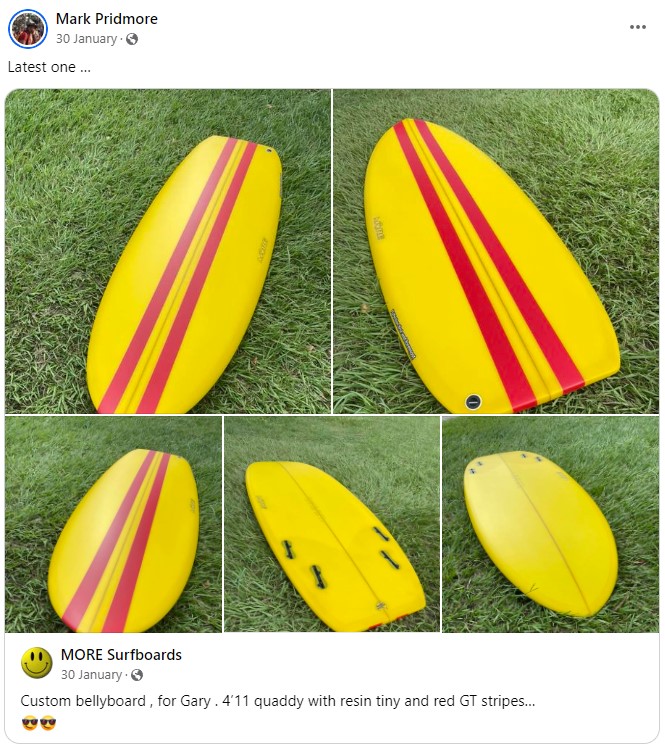

January 30, 2024
https://www.facebook.com/groups/paipobe ... 925685080/

Last one....
It’s about 2 3/4 thick …




March 19, 2024
https://www.facebook.com/groups/paipobe ... 868965080/

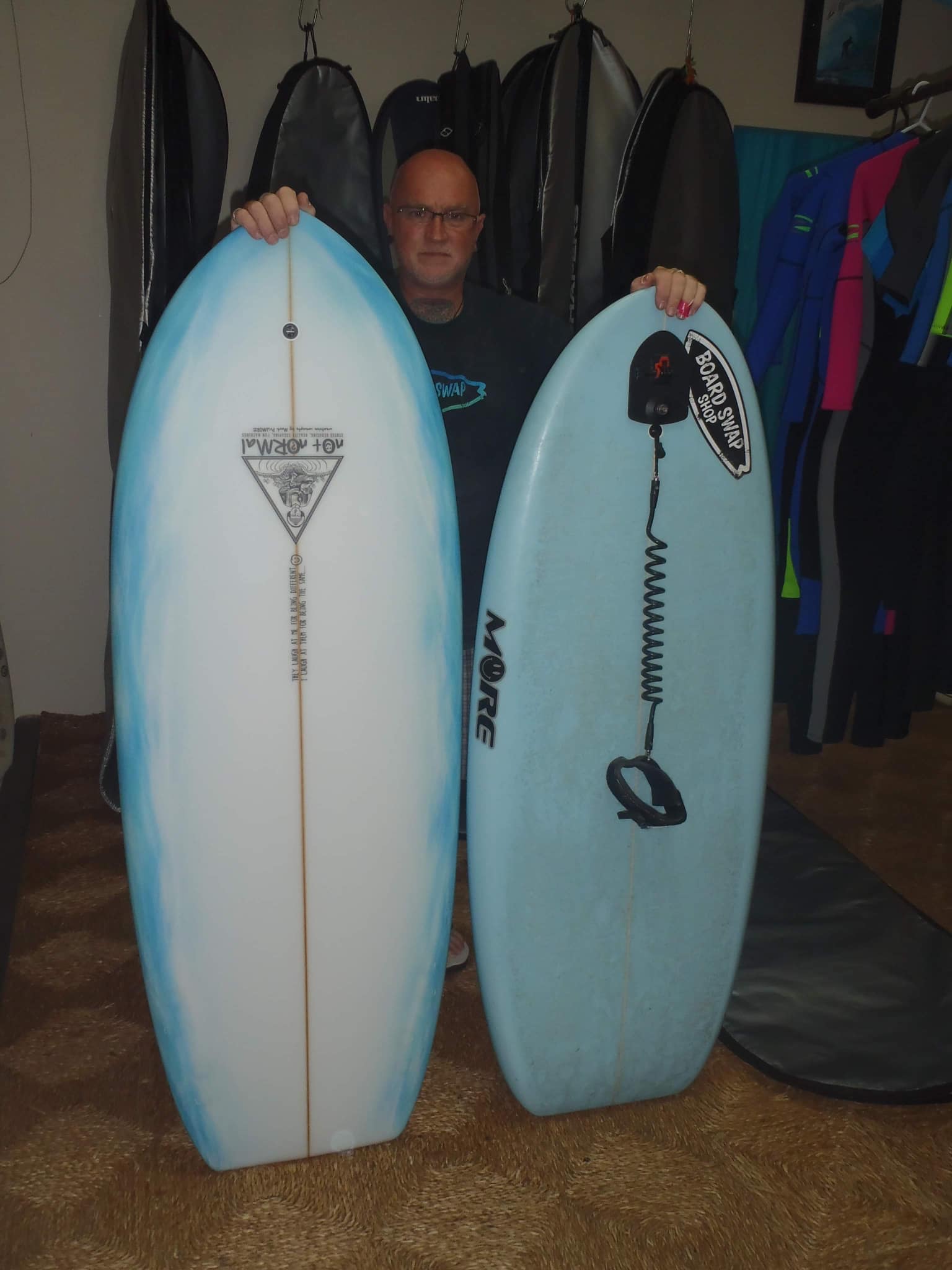

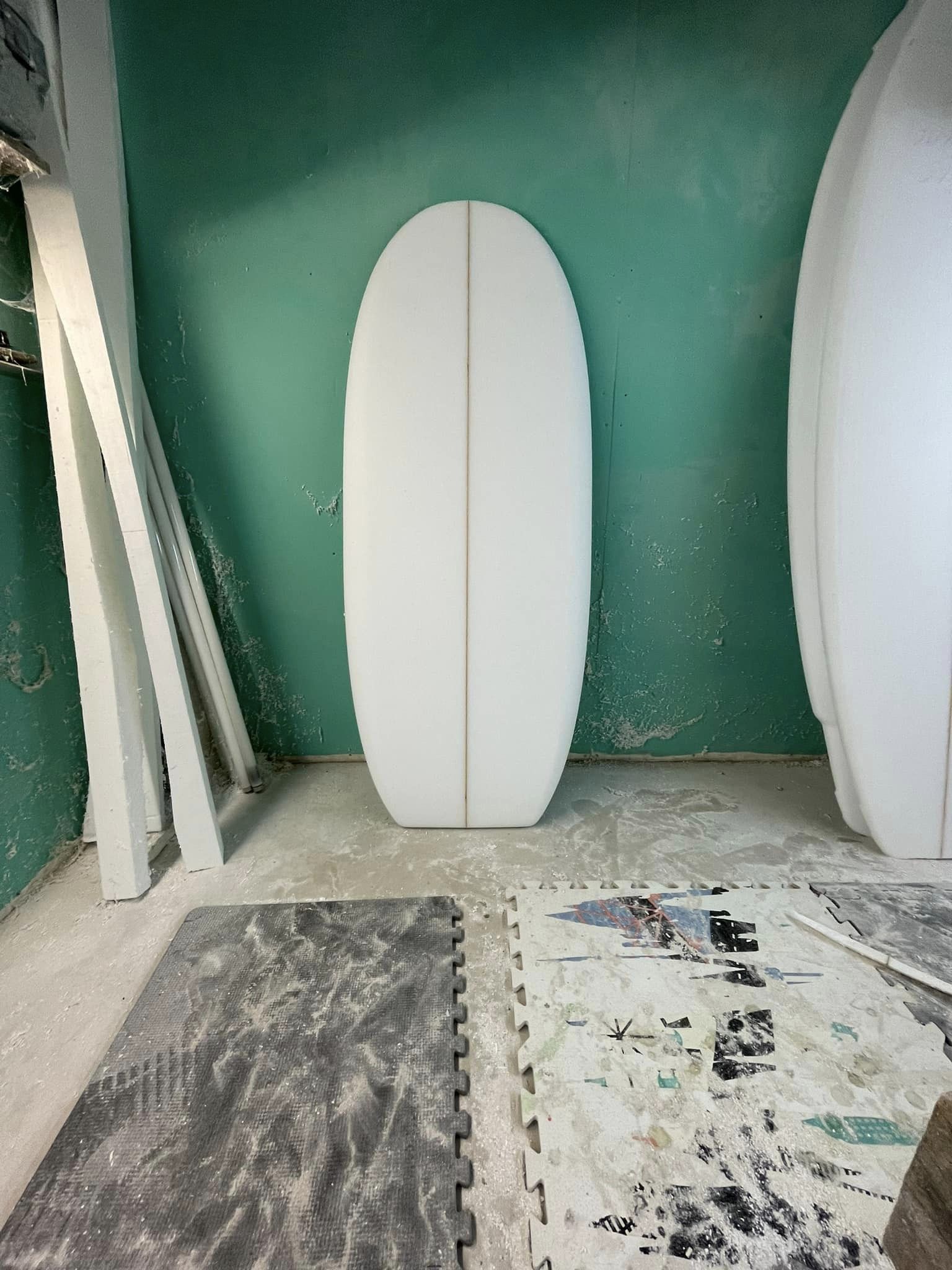

Custom bellyboard for Arthur … 5’5 x 23 x 2 7/8 x 45 ltrs …
MORE Surfboards
April 2

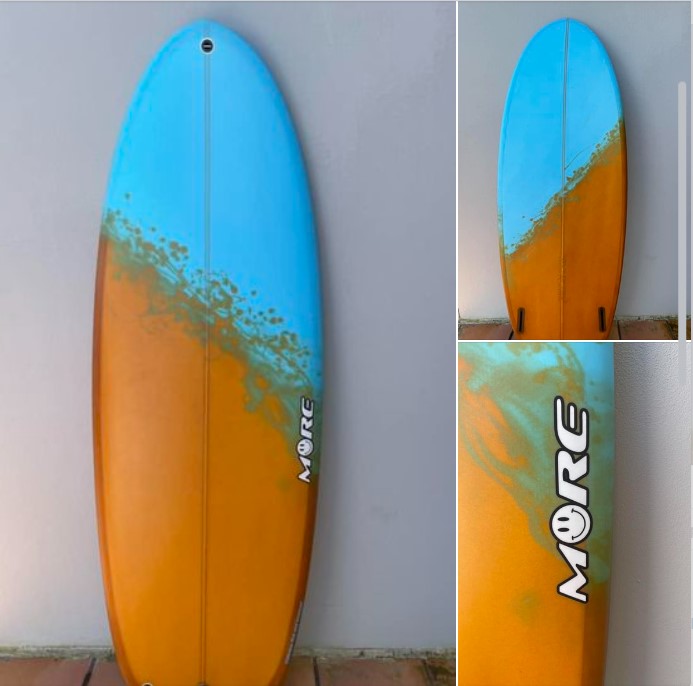

Tummy Bug - bellyboard for Arthur …5’5 x 23 x 3 , vol = 45 ltrs
Arthur’s a big guy so I kept maximum foam in this one for him, he has been riding way under volumes boards so I’m excited for him to ride this and enjoy the extra floatation … think the resin tint of the brown and blue turned out awesome too …
Twin fin Futures …
t]
